Register your webhook

Log in to your account on the Zodia Markets Customer Portal
Click on your profile icon in the top-right corner
Select SETTINGS from the dropdown menu

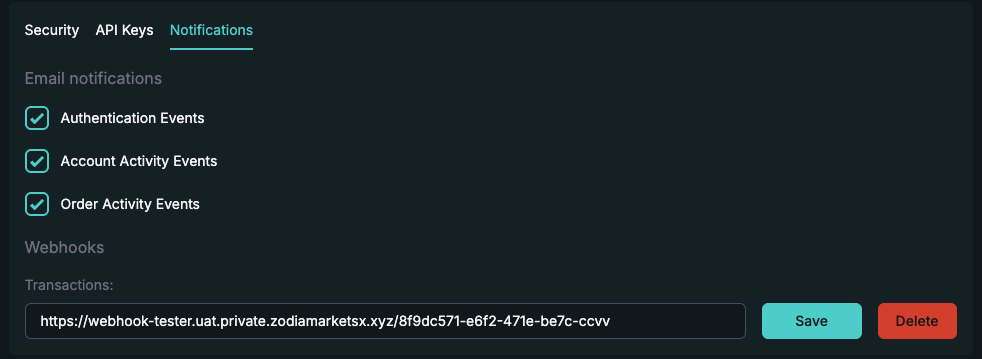

In the Settings page, click the Notifications tab
Add your webhook URL and click 'Save'

Webhook URL Requirements:

Must use HTTPS or HTTP protocol
Must be publicly accessible
Must return responses within 10 seconds
Recommended: Use a dedicated endpoint (e.g., https://api.yourcompany.com/webhooks/zodia/transactions)

How Webhooks Work

Request Format

Zodia Markets sends webhook notifications as POST requests to your registered endpoint.

Request Method: POST

Request Headers:

Content-Type: application/json

Webhook Payload

Payload Structure

Request Body:
The body contains transaction data in the same format as the Transaction List REST endpoint.

Sample:

{
  "transactionClass": "RFSTRADE",
  "uuid": "0650ae88-f6cb-11f0-bee0-8bfc65fb40ae",
  "userUuid": "2073252c-81ed-41be-bf4d-d51b8f2246b8",
  "amount": 14799.1,
  "fee": 0,
  "balanceBefore": 0,
  "balanceAfter": 0,
  "ccy": "HKD",
  "transactionState": "PENDING",
  "transactionType": "TRADE_CREDIT",
  "received": 1769001230161,
  "processed": 1769001230161,
  "timestampMillis": 1769001230347,
  "displayTitle": null,
  "displayDescription": null,
  "paymentTransferType": null,
  "customRef": "407cbda6-0740-4ab4-8fc9-12ef40597048",
  "quoteId": "AnNxW46hcgwHCivIJ8wGJ48UJb2GRn35dUXJQgg7HMDa6aR8ZGtyTcbb3IMBABQqHD0ud16e1AseExAYAzg2E0xAbzg7cXVbDwB6G4w4/kJI2S8soeprQNeorLBRHmzZO4Ef0R0hEnpijiNOaRIF6xVxZ0heDCYrcYxjqRw7OiddOz4UCGIYGTkKbTFlEyvyrTLmtlt91Y3vXQrR5CeXGAAGABsRBzl0BgAPOgc+PhcJAmoMAzk6NVQFHzoZLRAIGhMAWRgGLgQDOAAMRS0+dzQrdDkSKAAqRz4UFEM7EBgCOD53EDhhRgstdRATA2EuET4QWUM7FDVSOwEQDwApMQ8GKjk=_client",
  "tradeId": "0650ae88-f6cb-11f0-bee0-8bfc65fb40ae",
  "executedPrice": "[USDC/HKD] 7.78899821",
  "tradeRef": "24e7091a9e114f83837e58e1256eb349_client",
  "settleDate": "2026-01-22",
  "beneficiaryUuid": null
}

State Change Notifications

Your webhook receives notifications when transactionState changes:

State Flow:

PENDING → PROCESSED

Example State Change:

Initial notification (PENDING):

{
  "uuid": "0650ae88-f6cb-11f0-bee0-8bfc65fb40ae",
  "transactionState": "PENDING",
  "transactionClass": "RFSTRADE",
  ...
}

Update notification (PROCESSED):

{
  "uuid": "0650ae88-f6cb-11f0-bee0-8bfc65fb40ae",
  "transactionState": "PROCESSED",
  "transactionClass": "RFSTRADE",
  ...
}

Transaction Types

Your webhook receives updates for all transaction types:

Transaction Class	Description	Updates
OTCTRADE	Trade legs entered by the Zodia Markets OTC desk. Each leg generates a separate notification (e.g., USDC buy leg and HKD sell leg)	When trade leg moves from `PENDING` to `PROCESSED`
RFSTRADE	Trade legs entered via e-Trader platform or WebSocket API. Each leg generates a separate notification (e.g., USDC buy leg and HKD sell leg)	When trade leg moves from `PENDING` to `PROCESSED`
COIN	Crypto deposit and withdrawal transactions	When transaction moves from `PENDING` to `PROCESSED`
CASH	Fiat deposit and withdrawal transactions	When transaction moves from `PENDING` to `PROCESSED`

Transaction Types Detail

Transaction Type	Description
`TRADE_CREDIT`	Credit side of a trade (receiving asset)
`TRADE_DEBIT`	Debit side of a trade (sending asset)
`DEPOSIT`	Incoming deposit (crypto or fiat)
`WITHDRAWAL`	Outgoing withdrawal (crypto or fiat)

IP Whitelisting

All webhook notifications are sent from a fixed set of static IP addresses. You can whitelist these IPs on your firewall or WAF to ensure you only accept traffic from Zodia Markets.

Current IPs

18.175.43.216
35.177.190.134

Programmatic IP Discovery

Rather than hardcoding IPs, we recommend fetching them programmatically from our published endpoint:

GET https://trade.zodiamarkets.com/.well-known/webhooks/ips.json

Response:

{
  "service": "zodia-markets-ips",
  "version": 1,
  "ipv4_cidrs": [
    "18.175.43.216/32",
    "35.177.190.134/32"
  ],
  "created_at": "2026-03-10T00:00:00Z",
  "last_updated": "2026-03-10T00:00:00Z",
  "change_notice": null
}

Fields:

Field	Description
`version`	Integer that increments whenever the IP list changes. Monitor this to detect updates.
`ipv4_cidrs`	List of source IP addresses in CIDR notation (`/32` = single IP).
`last_updated`	Timestamp of the most recent change to the IP list.
`change_notice`	`null` when no changes are planned. When an IP change is scheduled, this will contain a `message` and `effective_date`.

IP Change Policy: Zodia Markets will provide a minimum of 30 days' advance notice before any change to the webhook source IPs. During transitions, both old and new IPs will be active simultaneously. The change_notice field and notifications will communicate upcoming changes.

Expected Response

Success Response

Your webhook endpoint must return a successful HTTP status code to acknowledge receipt.

Success Status Codes:

200 OK (recommended)
201 Created
202 Accepted
204 No Content

Response Body: Optional (can be empty)

Example Success Response:

HTTP/1.1 200 OK
Content-Type: application/json

{
  "received": true,
  "transactionId": "0650ae88-f6cb-11f0-bee0-8bfc65fb40ae"
}

Error Handling

If your webhook endpoint returns an error or times out, Zodia Markets will retry the notification.

Error Status Codes:

4xx (Client Error) - No retry
5xx (Server Error) - Will retry with exponential backoff
Timeout (>10 seconds) - Will retry max 3 times if webhook service endpoint is available

Recommendations

Idempotency: Your webhook may receive the same notification multiple times. Implement idempotent processing using the uuid field.

# Track processed transaction UUIDs
processed_transactions = set()

def process_webhook(transaction):
    transaction_uuid = transaction['uuid']

    if transaction_uuid in processed_transactions:
        print(f"Duplicate notification for {transaction_uuid}, skipping")
        return

    # Process transaction
    handle_transaction(transaction)

    # Mark as processed
    processed_transactions.add(transaction_uuid)

Filter by Transaction State

Only process transactions that reach PROCESSED state:

def process_webhook(transaction):
    if transaction['transactionState'] != 'PROCESSED':
        print(f"Transaction {transaction['uuid']} still pending, skipping")
        return

    # Process completed transaction
    handle_processed_transaction(transaction)

Handle Third-Party Settlement

Check for beneficiary UUID to identify third-party settlements:

def process_webhook(transaction):
    if transaction.get('beneficiaryUuid'):
        print(f"Third-party settlement detected")
        print(f"Beneficiary: {transaction['beneficiaryUuid']}")
        handle_third_party_settlement(transaction)
    else:
        print(f"Standard settlement to own account")
        handle_standard_settlement(transaction)

Log Everything

import logging

@app.route('/webhook', methods=['POST'])
def webhook():
    transaction = request.json

    # Log incoming webhook
    logging.info(f"Webhook received: {transaction['uuid']}")
    logging.info(f"Class: {transaction['transactionClass']}")
    logging.info(f"State: {transaction['transactionState']}")
    logging.info(f"Amount: {transaction['amount']} {transaction['ccy']}")

    try:
        process_webhook(transaction)
        logging.info(f"Webhook processed successfully: {transaction['uuid']}")
    except Exception as e:
        logging.error(f"Webhook processing failed: {e}")
        raise

    return jsonify({'received': True}), 200
